Product Definition

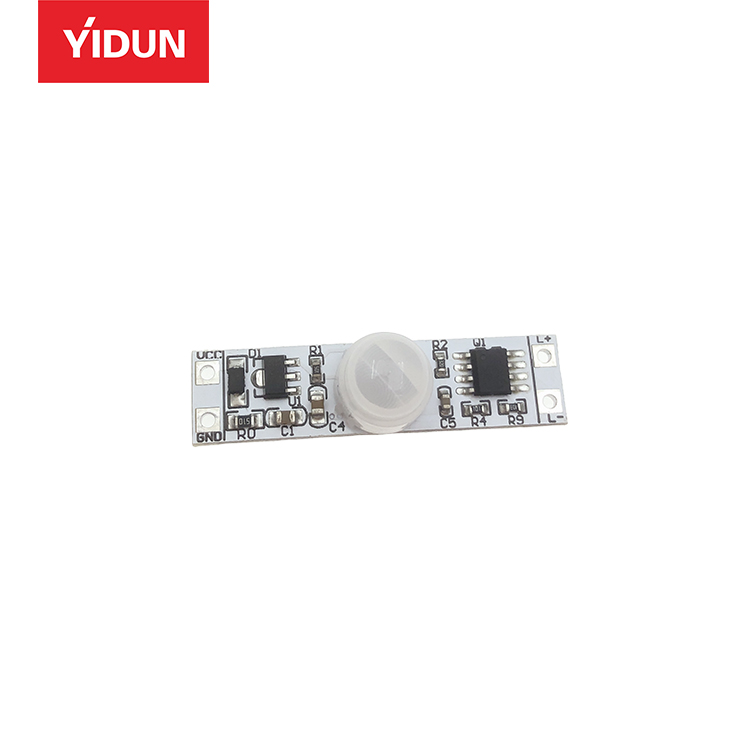

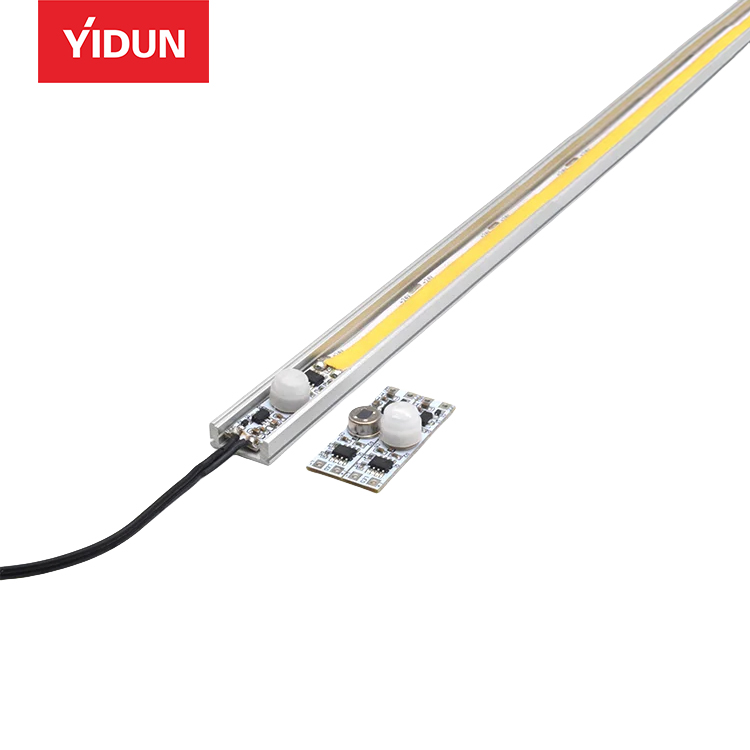

The LED PIR motion sensor switch (Model PIR Sensor AV) is a human body detection controller designed for LED lighting systems. It uses passive infrared sensing technology to detect human movement and automatically control LED lights.
Key Features
• PIR motion detection for automatic LED lighting control
• Hands-free on/off operation
• Compatible with low-voltage LED lighting systems
• Stable detection and reliable performance

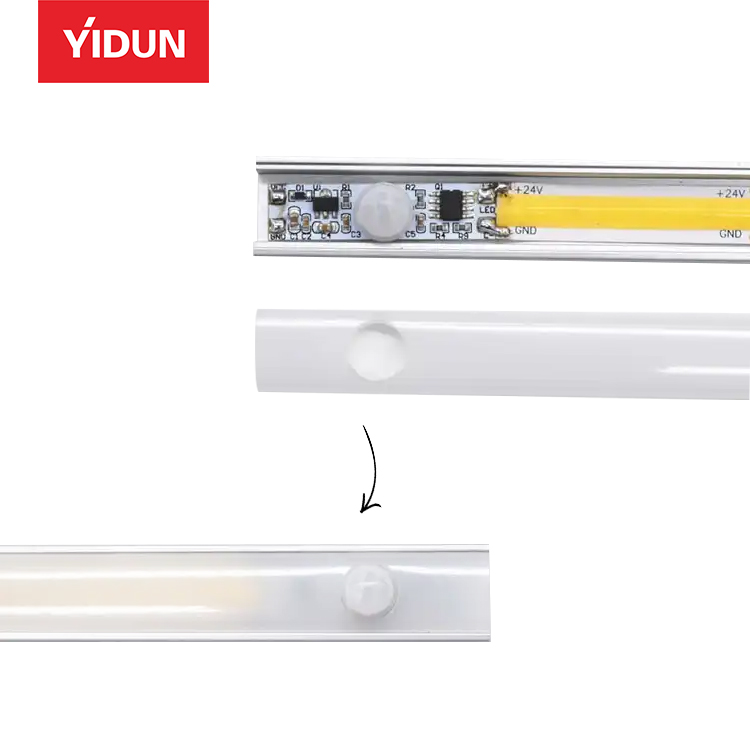

• Compact design suitable for furniture lighting integration
Technical Specifications
• Model: PIR Sensor AV
• Type: PIR Motion Sensor Switch
• Input Voltage: DC 5V–24V constant voltage
• Power Capacity:
– 5V : up to 25W
– 12V : up to 60W
– 24V : up to 120W
• Application: LED cabinet lighting, wardrobe lighting, furniture lighting
Typical Applications

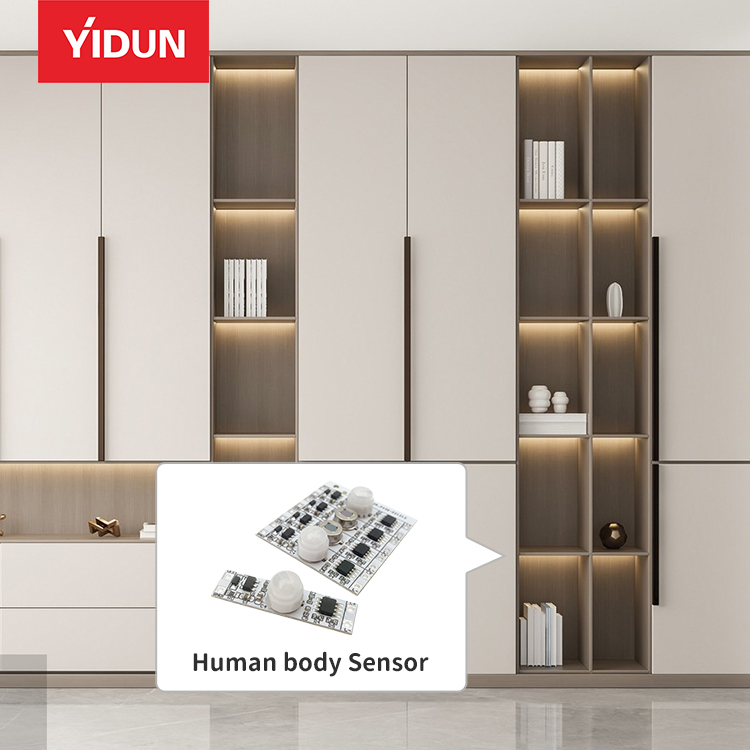

• LED cabinet lighting

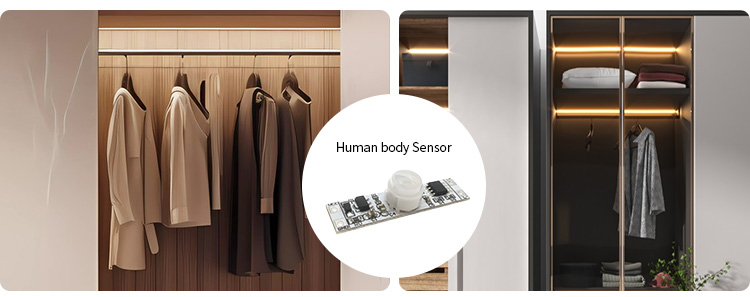

• Wardrobe lighting systems
• Furniture LED lighting
• Display cabinet lighting
• Interior smart lighting control
Working Principle
This PIR sensor switch detects infrared radiation emitted by the human body. When motion is detected within its sensing area, the controller automatically activates the connected LED lights and turns them off when no motion is detected.
Installation & Usage Notes

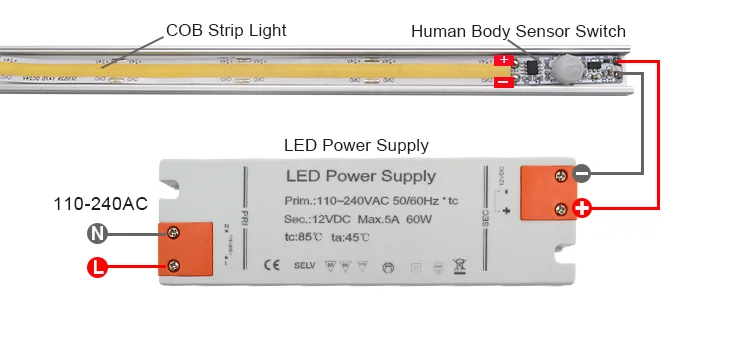

• Use with DC constant-voltage LED power supplies (5V–24V)
• Ensure the LED load does not exceed the rated power
• Install in indoor environments without strong heat interference
• Avoid blocking the sensor detection area
Benefits Summary
The PIR Sensor AV LED motion sensor switch provides convenient hands-free lighting control with reliable motion detection, making it ideal for cabinet lighting, wardrobe lighting, and other indoor LED lighting systems.
| Type |
LED human body infrared sensor switch |
| Item No |
PIR Sensor AV |
| Rated Power |
60W |
| Voltage |
DC12V/24V |
| Sensing Distance: |
3M |

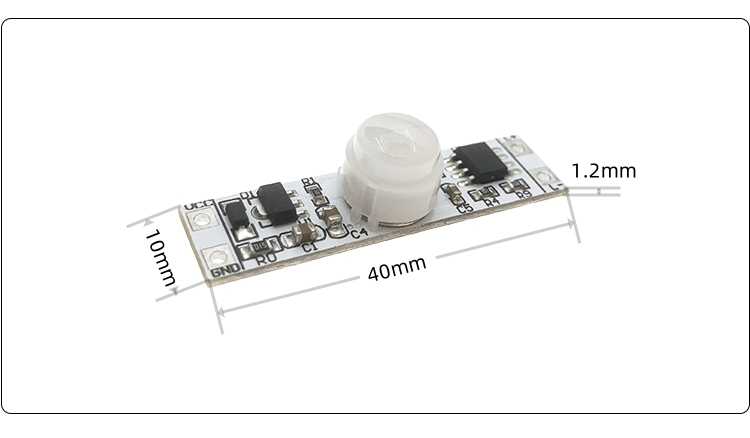

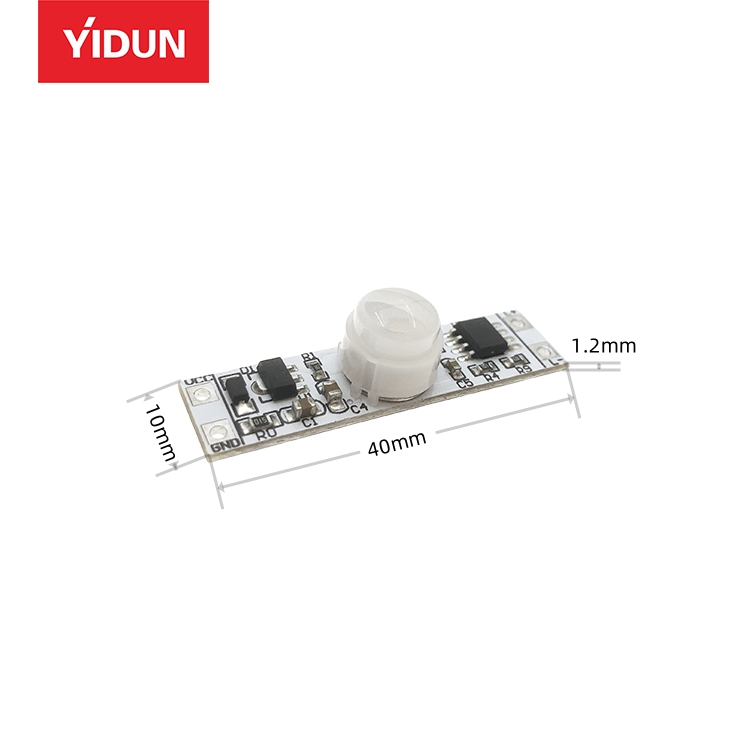

| size |
40mm *10mm*1.2mm |
| Application |
Cabinet light/wardrobe light on/off |
To meet your needs for cabinet and wardrobe lighting, we offer a range of smart LED switches suitable for both 12V and 24V power sources. Whether it's an LED cabinet light or an LED wardrobe light, our switch designs cover various operating methods, ensuring your lighting experience is more convenient and flexible.
LED Cabinet Light Switch Series:
LED Cabinet Switch: Specifically designed for 12V and 24V, providing reliable power control for your cabinets to ensure bright illumination.
LED Cabinet Light Hand Sweep Switch: Utilizing advanced hand sweep technology, a gentle sweep easily lights up the LED cabinet light, offering simple operation.
LED Cabinet Light Touch Switch: Modern touch-sensitive design, a light touch achieves the on/off control of the LED cabinet light, providing a convenient user experience.
LED Cabinet Light Motion Sensor Switch: Integrated with motion sensor technology, intelligently sensing your presence to offer smart lighting control for your cabinet.
LED Cabinet Light Radar Sensor Switch: Incorporating radar sensor technology for quicker, more precise detection of environmental changes, creating a more efficient lighting system for your cabinet.
LED Wardrobe Light Switch Series:
LED Wardrobe Switch: Suitable for both 12V and 24V, providing reliable power control for wardrobe lighting, showcasing your clothing in bright illumination.
LED Wardrobe Light Hand Sweep Switch: Advanced hand sweep technology instantly adds brightness to your wardrobe, unique and convenient.
LED Wardrobe Light Touch Switch: Modern touch-sensitive design for easy control of wardrobe lighting, creating a stylish clothing display space.
LED Wardrobe Light Motion Sensor Switch: Integrated with motion sensor technology, intelligently sensing your needs and providing thoughtful lighting for your wardrobe.
LED Wardrobe Light Radar Sensor Switch: Utilizing radar sensor technology for more intelligent and efficient control of wardrobe lighting, creating an ideal environment for showcasing your clothing.
Whether you choose an LED cabinet light switch or an LED wardrobe light switch, we are committed to providing advanced, convenient, and reliable solutions to add vibrancy to your home environment.
